Structure Member Alignment, Padding and Data Packing #

Tthe content is copied from this post with some modification.

In languages like C/C++, Go, the structures are used as data packs. They don’t provide any data encapsulation or data hiding features.

In this article, we will discuss the property of structure padding in C along with data alignment and structure packing, the same could apply to Go as well.

Data Alignment in Memory #

Every data type in C will have alignment requirements (in fact it is mandated by processor architecture, not by language). A processor will have processing word length as that of data bus size. On a 64bit machine, the processing word size will be 8bytes(64bit), the data bus width would be 64bit as well.

Historically memory is byte addressable and arranged sequentially. If the memory is arranged as a single bank of one-byte width, the processor needs to issue 8 memory read cycles to fetch 8bytes. The modern memory is arranged arranged as a group of 8 banks and each bank for 1byte as shown in the Figure 1.

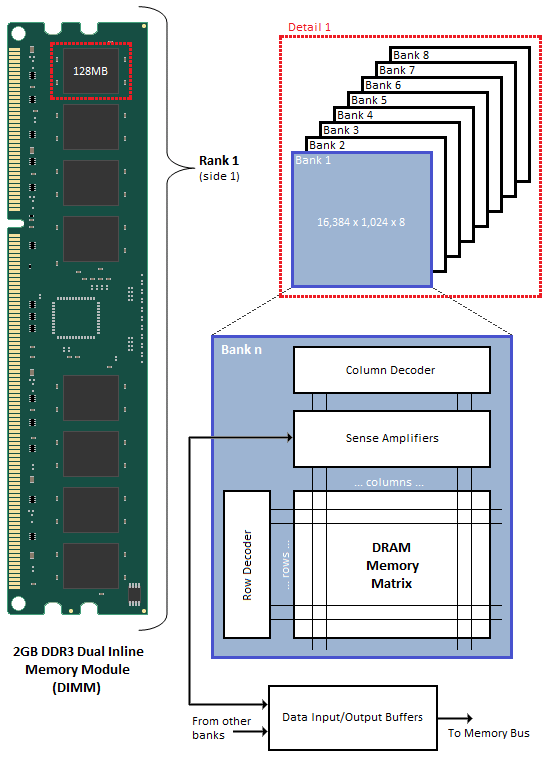

Figure 1: Typical functional arrangement of SDRAM memory space.

The memory addressing still be sequential. If bank 0 occupies an address X, bank 1, bank 2 and bank 3 will be at (X + 1), (X + 2), and (X + 3) addresses and so on. If an double of 8 bytes is allocated on X address (X is a multiple of 8), the processor needs only one memory cycle to read the entire double(Ignoring the cache hierarchically). Whereas, if the double is allocated at an address other than a multiple of 8, it spans across two rows of the banks as shown in the below figure. Such an double requires two memory read cycles to fetch the data.

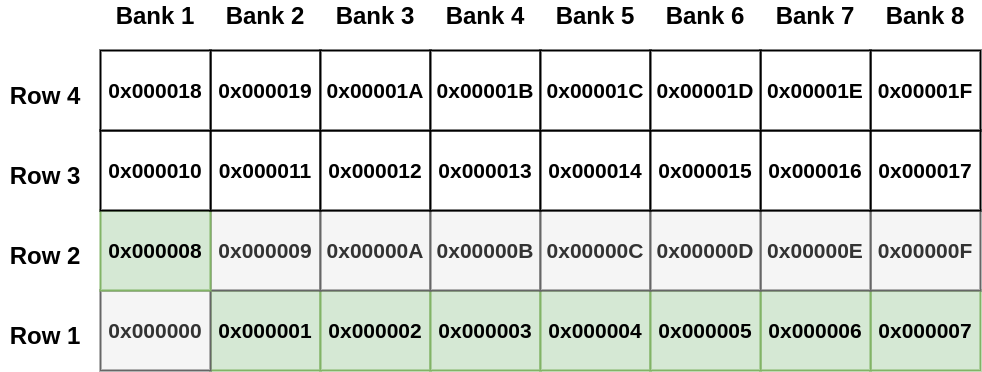

Figure 2: misaligned memory access for a double, asumming the address of the double is at 0x000001, to read the double, processor needs to issue two bus read command to read Row1 & Row2, then put 0x000001 - 0x000008(inclusive) into a register. again, ignoring the cache hierarchically.

Put it more concretely: when we say that “data is aligned to memory addresses,” we mean that the data is stored at memory addresses that are multiples of the data’s alignment requirement. In other words, the data is stored at addresses that satisfy the alignment criteria of the data type.

A variable’s data alignment deals with the way the data is stored in these banks. For example, the natural alignment of int on a 64bit machine is 4 bytes. When a data type is naturally aligned, the CPU fetches it in minimum read cycles.

Similarly, the natural alignment of a short int is 2 bytes. It means a short int can be stored in bank 0 – bank 1 pair or bank 2 – bank 3 pair. A double requires 8 bytes and occupies one row in the memory banks. Any misalignment of double will force more than one read cycles to fetch double data.

Structure Padding in C #

Structure padding is the addition of some empty bytes of memory in the structure to naturally align the data members in the memory. It is done to minimize the CPU read cycles to retrieve different data members in the structure.

Try to calculate the size of the following structures:

// structure A
typedef struct structa_tag {
	char c;
	short int s;
} structa_t;

// structure B
typedef struct structb_tag {
	short int s;
	char c;
	int i;
} structb_t;

// structure C
typedef struct structc_tag {
	char c;
	double d;
	int s;
} structc_t;

// structure D
typedef struct structd_tag {
	double d;
	int s;
	char c;
} structd_t;

Calculating the size of each structure by directly adding the size of all the members, we get:

• Size of Structure A = Size of (char + short int) = 1 + 2 = 3.
• Size of Structure B = Size of (short int + char + int) = 2 + 1 + 4 = 7.
• Size of Structure C = Size of (char + double + int) = 1 + 8 + 4 = 13.
• Size of Structure A = Size of (double + int + char) = 8 + 4 + 1= 13.

Now let’s confirm the size of these structures using the given C Program:

#include <stdio.h>

// Alignment requirements
// (typical 32 bit machine)

// char         1 byte
// short int    2 bytes
// int          4 bytes
// double       8 bytes

// structure A
typedef struct structa_tag {
    char c;
    short int s;
} structa_t;

// structure B
typedef struct structb_tag {
    short int s;
    char c;
    int i;
} structb_t;

// structure C
typedef struct structc_tag {
    char c;
    double d;
    int s;
} structc_t;

// structure D
typedef struct structd_tag {
    double d;
    int s;
    char c;
} structd_t;

int main()
{
    printf("sizeof(structa_t) = %lu\n", sizeof(structa_t));
    printf("sizeof(structb_t) = %lu\n", sizeof(structb_t));
    printf("sizeof(structc_t) = %lu\n", sizeof(structc_t));
    printf("sizeof(structd_t) = %lu\n", sizeof(structd_t));

    return 0;
}

Output

sizeof(structa_t) = 4
sizeof(structb_t) = 8
sizeof(structc_t) = 24
sizeof(structd_t) = 16

As we can see, the size of the structures is different from those we calculated.

This is because of the alignment requirements of various data types, every member of the structure should be naturally aligned. The members of the structure are allocated sequentially in increasing order.

Let us analyze each struct declared in the above program. For the sake of convenience, assume every structure type variable is allocated on a 4-byte boundary (say 0x0000), i.e. the base address of the structure is multiple of 4 (need not necessarily always, see an explanation of structc_t).

Structure A

// structure A
typedef struct structa_tag {
    char c;
    short int s;
} structa_t;

The structa_t first element is char which is one byte aligned, followed by short int. short int is 2 bytes aligned. If the short int element is immediately allocated after the char element, it will start at an odd address boundary. The compiler will insert a padding byte after the char to ensure short int will have an address multiple of 2 (i.e. 2 byte aligned). The total size of structa_t will be,

sizeof(char) + 1 (padding) + sizeof(short), 1 + 1 + 2 = 4 bytes.

Structure B

// structure B
typedef struct structb_tag {
    short int s;
    char c;
    int i;
} structb_t;

The first member of structb_t is short int followed by char. Since char can be on any byte boundary no padding is required between short int and char, in total, they occupy 3 bytes. The next member is int. If the int is allocated immediately, it will start at an odd byte boundary. We need 1-byte padding after the char member to make the address of the next int member 4-byte aligned. On total the size of structb_t is,

2 + 1 + 1 (padding) + 4 = 8 bytes.

Structure C - Every structure will also have alignment requirements

// structure C
typedef struct structc_tag {
    char c;
    double d;
    int s;
} structc_t;

Applying same analysis, structc_t needs sizeof(char) + 7-byte padding + sizeof(double) + sizeof(int) = 1 + 7 + 8 + 4 = 20 bytes. However, the sizeof(structc_t) is 24 bytes. It is because, along with structure members, structure type variables itself will also have natural alignment. Let us understand it by an example. Say, we declared an array of structc_t as shown below

structc_t structc_array[3];

Assume, the base address of structc_array is 0x0000 for easy calculations. If the structc_t occupies 20 (0x14) bytes as we calculated, the second structc_t array element (indexed at 1) will be at 0x0000 + 0x0014 = 0x0014. It is the start address of the index 1 element of the array. The double member of this structc_t will be allocated on 0x0014 + 0x1 + 0x7 = 0x001C (decimal 28) which is not multiple of 8 and conflicts with the alignment requirements of double. As we mentioned at the top, the alignment requirement of double is 8 bytes.

In order to avoid such misalignment, the compiler introduces alignment requirements to every structure. It will be as that of the largest member of the structure. In our case alignment of structa_t is 2, structb_t is 4 and structc_t is 8. If we need nested structures, the size of the largest inner structure will be the alignment of an immediate larger structure.

In structc_t of the above program, there will be a padding of 4 bytes after the int member to make the structure size multiple of its alignment. Thus the size of (structc_t) is 24 bytes. It guarantees correct alignment even in arrays.

Structure D

// structure D
typedef struct structd_tag {
    double d;
    int s;
    char c;
} structd_t;

In a similar way, the size of the structure D is :

sizeof(double) + sizeof(int) + sizeof(char) + padding(3) = 8 + 4 + 1 + 3 = 16 bytes

How to Reduce Structure Padding?

By now, it may be clear that padding is unavoidable. There is a way to minimize padding. The programmer should declare the structure members in their increasing/decreasing order of size. An example is structd_t given in our code, whose size is 16 byte(24 bytes of structc_t).

What is Structure Packing? #

Sometimes it is mandatory to avoid padded bytes among the members of the structure. For example, reading contents of ELF file header or BMP or JPEG file header or Reading data from network. We need to define a structure similar to that of the header layout and map it. However, care should be exercised in accessing such members. Typically reading byte by byte is an option to avoid misaligned exceptions but there will be a hit on performance.

Most of the compilers provide nonstandard extensions to switch off the default padding like pragmas or command line switches. Consult the documentation of the respective compiler for more details.

In GCC, we can use the following code for structure packing:

#pragma pack(1)

or

struct name {
    ...
}__attribute__((packed));

Example of Structure Packing

// C Program to demonstrate the structure packing
#include <stdio.h>
#pragma pack(1)

// structure A
typedef struct structa_tag {
    char c;
    short int s;
} structa_t;

// structure B
typedef struct structb_tag {
    short int s;
    char c;
    int i;
} structb_t;

// structure C
typedef struct structc_tag {
    char c;
    double d;
    int s;
} structc_t;

// structure D
typedef struct structd_tag {
    double d;
    int s;
    char c;
} structd_t;

int main()
{
    printf("sizeof(structa_t) = %lu\n", sizeof(structa_t));
    printf("sizeof(structb_t) = %lu\n", sizeof(structb_t));
    printf("sizeof(structc_t) = %lu\n", sizeof(structc_t));
    printf("sizeof(structd_t) = %lu\n", sizeof(structd_t));

    return 0;
}

Output

sizeof(structa_t) = 3
sizeof(structb_t) = 7
sizeof(structc_t) = 13
sizeof(structd_t) = 13

FAQs on Structure Padding in C #

1. Is alignment applied for stack?

Yes. The stack is also memory. The system programmer should load the stack pointer with a memory address that is properly aligned. Generally, the processor won’t check stack alignment, it is the programmer’s responsibility to ensure proper alignment of stack memory. Any misalignment will cause run-time surprises. For example, if the processor word length is 64-bit, the stack pointer also should be aligned to be a multiple of 8 bytes.

2. When arguments are passed on the stack, are they subjected to alignment?

Yes. The compiler helps the programmer in making proper alignment out of box. Consider the following program.

void argument_alignment_check( char c1, char c2 )
{
    // Considering downward stack
    // (on upward stack the output will be negative)
    printf("Displacement %d\n", (int)&c2 - (int)&c1);
}

The output is -4 on my 64bit machine with `gcc 11.4.0``. which indicates that the distance between c1 and c2 on the stack is 4 bytes. This suggests that the two char arguments are being packed closely together on the stack with a 4-byte alignment. While it might seem surprising, the alignment behavior might vary based on the compiler, optimization settings, and calling conventions used on your platform.

The full test code can be found here
