Concurrency Control Theory #

A censorship circumvention tool may be required to open the links in this post from mainland of china.

1. Introduction #

A DBMS’s concurrency control and recovery components permeate throughout the design of its entire architecture.

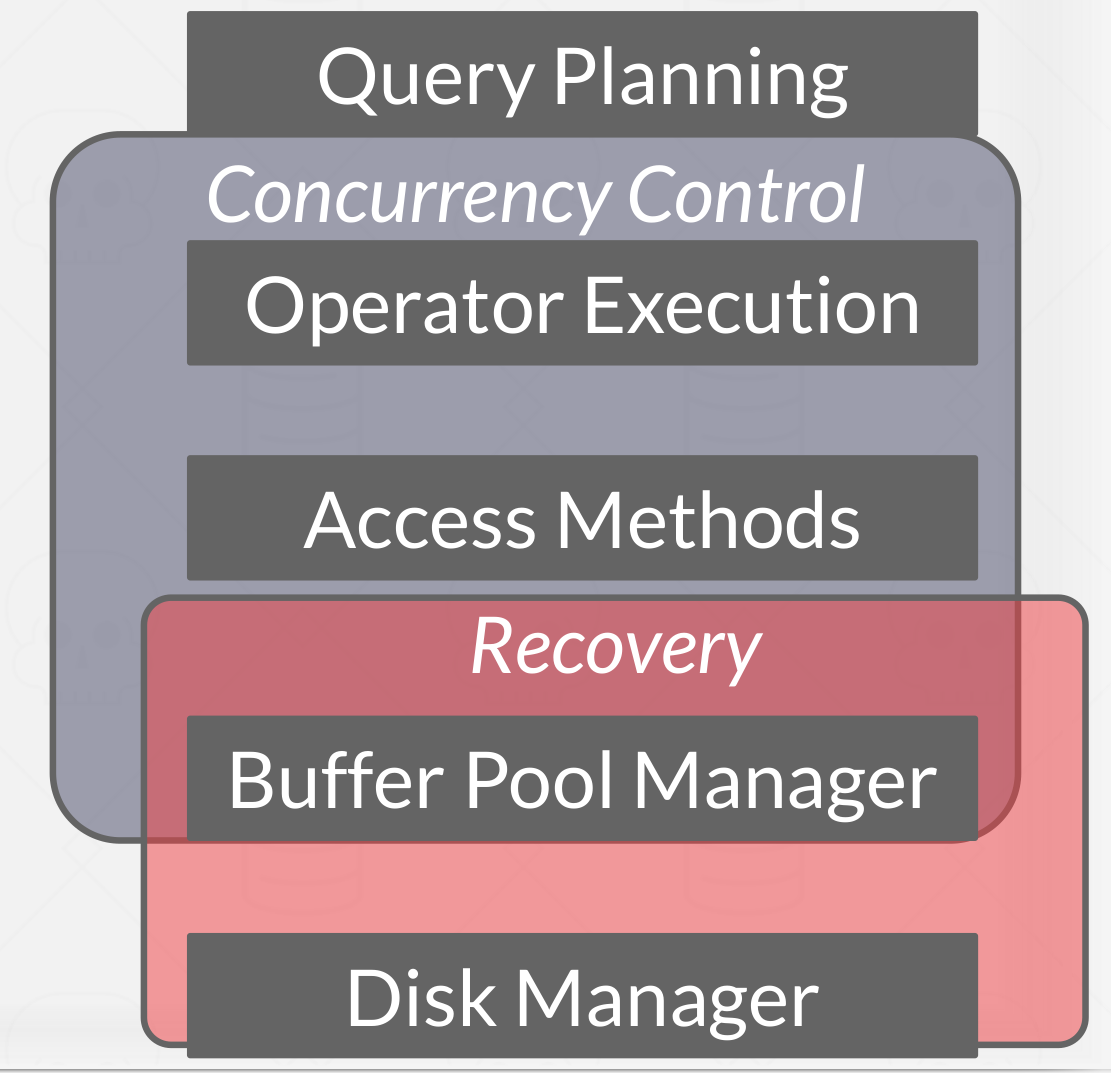

Concurrency control and recovery components

To get us motivated on talking about concurrency control, Here are two basic scenarios,

Lost Update Problem (Concurrency Control): How can we avoid race conditions when updating records at the same time?
Durability Problem (Recovery): How can we ensure the correct state in case of a power failure?

Concurrency control and Recovery are valuable properties of DBMSs, They are based on the concept of transactions with ACID properties.

2. Transaction #

A transaction is the execution of a sequence of one or more operations (e.g., SQL queries) on a shared database to perform some higher level function. The transaction represents the thing that the application is trying to do to achieve some state change in the database that reflects some aspect of the real world or something that occurred in the real world. They are the basic unit of change in a DBMS. Partial transactions are not allowed (i.e. transactions must be atomic).

Example: Move $100 from Andy’s bank account to his promotor’s account

Check whether Andy has $100.
Deduct $100 from his account.
Add $100 to his promotor’s account.

Either all of the steps need to be completed or none of them should be completed.

The Strawman System

A simple system for handling transactions is to execute one transaction at a time usinga single worker (e.g. one thread). Thus, only one transaction can be running at a time. To execute the transaction, the DBMS copies the entire database file and makes the transaction changes to this new file. If the transaction succeeds, then the new file becomes the current database file. If the transaction fails, the DBMS discards the new file and none of the transaction’s changes have been saved. This method is slow as it does not allow for concurrent transactions and requires copying the whole database file for every transaction.

A (potentially) better approach is to allow concurrent execution of independent transactions to get better utilization/throughput and increase response time to users while also maintaining correctness and fairness (as in all transactions are treated with equal priority and don’t get ”starved” by never being executed).

But executing concurrent transactions in a DBMS is challenging. It is difficult to ensure correctness (for example, if Andy only has $100 and tries to pay off two promoters at once, who should get paid?) while also executing transactions quickly (our strawman example guarantees sequential correctness, but at the cost of parallelism).

Arbitrary interleaving of operations can lead to:

Temporary Inconsistency: Unavoidable, but not an issue.
Permanent Inconsistency: Unacceptable, cause problems with correctness and integrity of data.

The scope of a transaction is only inside the database. It cannot make changes to the outside world because it cannot roll those back. For example, if a transaction causes an email to be sent, this cannot be rolled back by the DBMS if the transaction is aborted.

We need formal correctness criteria to determine whether an interleaving is valid.

3. Definitions #

Formally, a database can be represented as a fixed set of named data objects (A, B, C, . . .). These objects can be attributes, tuples, pages, tables, or even databases. The algorithms that we will discuss work on any type of object but all objects must be of the same type.

A transaction is a sequence of read and write operations (i.e., R(A), W (B)) on those objects. To simplify discussion, this definition assumes the database is a fixed size, so the operations can only be reads and updates, not inserts or deletions.

The boundaries of transactions are defined by the client. In SQL, a transaction starts with the BEGIN command. The outcome of a transaction is either COMMIT or ABORT.

For COMMIT, either all of the transaction’s modifications are saved to the database, or the DBMS overrides this and aborts instead.

For ABORT, all of the transaction’s changes are undone so that it is like the transaction never happened. Aborts can be either self-inflicted or caused by the DBMS.

The criteria used to ensure the correctness of a database is given by the acronym ACID.

Atomicity: Atomicity ensures that either all actions in the transaction happen, or none happen.
Consistency: If each transaction is consistent and the database is consistent at the beginning of the transaction, then the database is guaranteed to be consistent when the transaction completes.
Isolation: Isolation means that when a transaction executes, it should have the illusion that it is isolated from other transactions.
Durability: If a transaction commits, then its effects on the database should persist.

4. ACID: Atomicity #

The DBMS guarantees that transactions are atomic. The transaction either executes all its actions or none of them. There are two approaches to this:

Approach #1: Logging

DBMS logs all actions so that it can undo the actions of aborted transactions. It maintains undo records both in memory and on disk. Logging is used by almost all modern systems for audit and efficiency reasons.

Approach #2: Shadow Paging

The DBMS makes copies of pages modified by the transactions and transactions make changes to those copies. Only when the transaction commits is the page made visible. This approach is typically slower at runtime than a logging-based DBMS. However, one benefit is, if you are only single threaded, there is no need for logging, so there are less writes to disk when transactions modify the database. This also makes recovery simple, as all you need to do is delete all pages from uncommitted transactions. In general, though, better runtime performance is preferred over better recovery performance, so this is rarely used in practice.

5. ACID Consistency #

At a high level, consisitency means the “world” represented by the database is logically correct. All questions (i.e., queries) that the application asks about the data will return logically correct results. There are two notions of consistency:

Database Consistency: The database accurately represents the real world entity it is modeling and follows integrity constraints. (E.g. The age of a person cannot not be negative). Additionally, transactions in the future should see the effects of transactions committed in the past inside of the database(This would make more sense in a distributed DBMS).

Transaction Consistency: If the database is consistent before the transaction starts, it will also be consistent after. Ensuring transaction consistency is the application’s responsibility.

6. ACID: Isolation #

The DBMS provides transactions the illusion that they are running alone in the system. They do not see the effects of concurrent transactions. This is equivalent to a system where transactions are executed in serial order (i.e., one at a time). But to achieve better performance, the DBMS has to interleave the operations of concurrent transactions while maintaining the illusion of isolation.

Concurrency Control

A concurrency control protocol is how the DBMS decides the proper interleaving of operations from multiple transactions at runtime.

There are two categories of concurrency control protocols:

Pessimistic: The DBMS assumes that transactions will conflict, so it doesn’t let problems arise in the first place.
Optimistic: The DBMS assumes that conflicts between transactions are rare, so it chooses to deal with conflicts when they happen after the transactions commit.

Example

Assume at first A and B each have $1000.

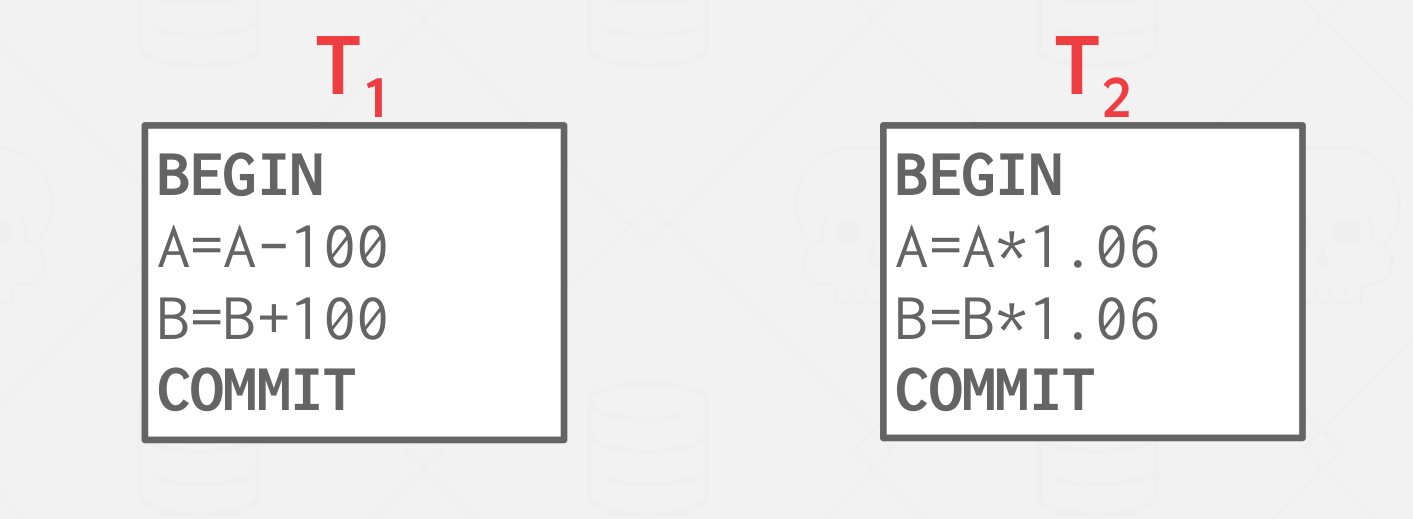

T1 transfers $100 from A’s account to B’s
T2 credits both accounts with 6% interest


Example

There are many possible outcomes of running T1 and T2 interleaved, But DBMS should guarantee A+B should always be $2000*1.06 = $2120.

The DBMS have no guarantee that T1 will execute before T2 or vice-versa, if both are submitted togther. But the net effect must be equivaletn to these two tranasctions running serially in some order.

So the legal outcomes would be one of the following

A = 954, B = 1166 –> A+B = $2120
A = 960, B = 1160 –> A+B = $2120

The outcome depends on whether T1 executes before T2 or vice versa.

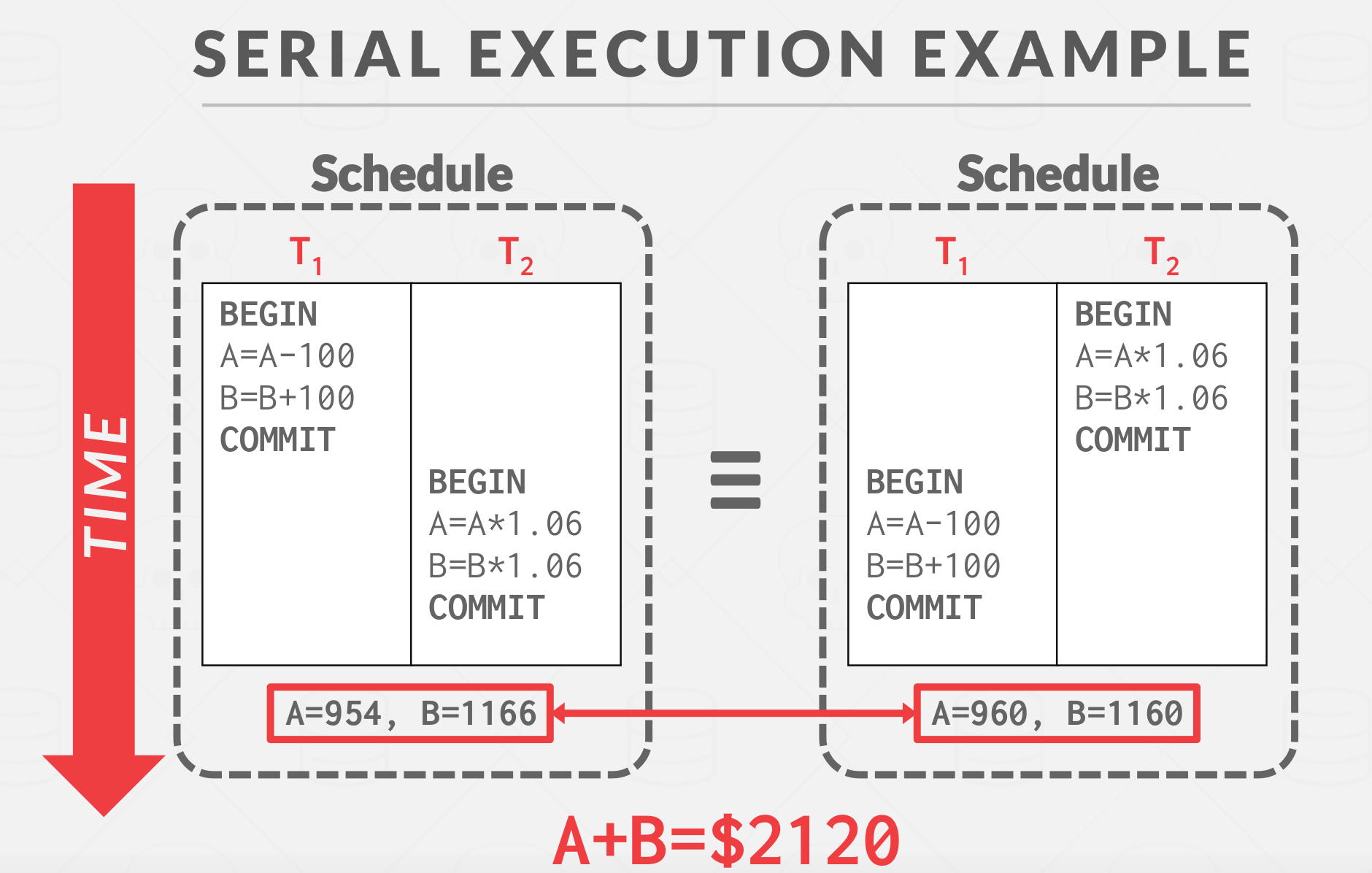

Serial execution example

Interleaving execution #

We interleave txns to maximize concurrency.

Slow disk/network I/O.
Multi-core CPUs.

When one txn stalls because of a resource (e.g., page fault), another txn can continue executing and make forward progress.

Good interleaving example:

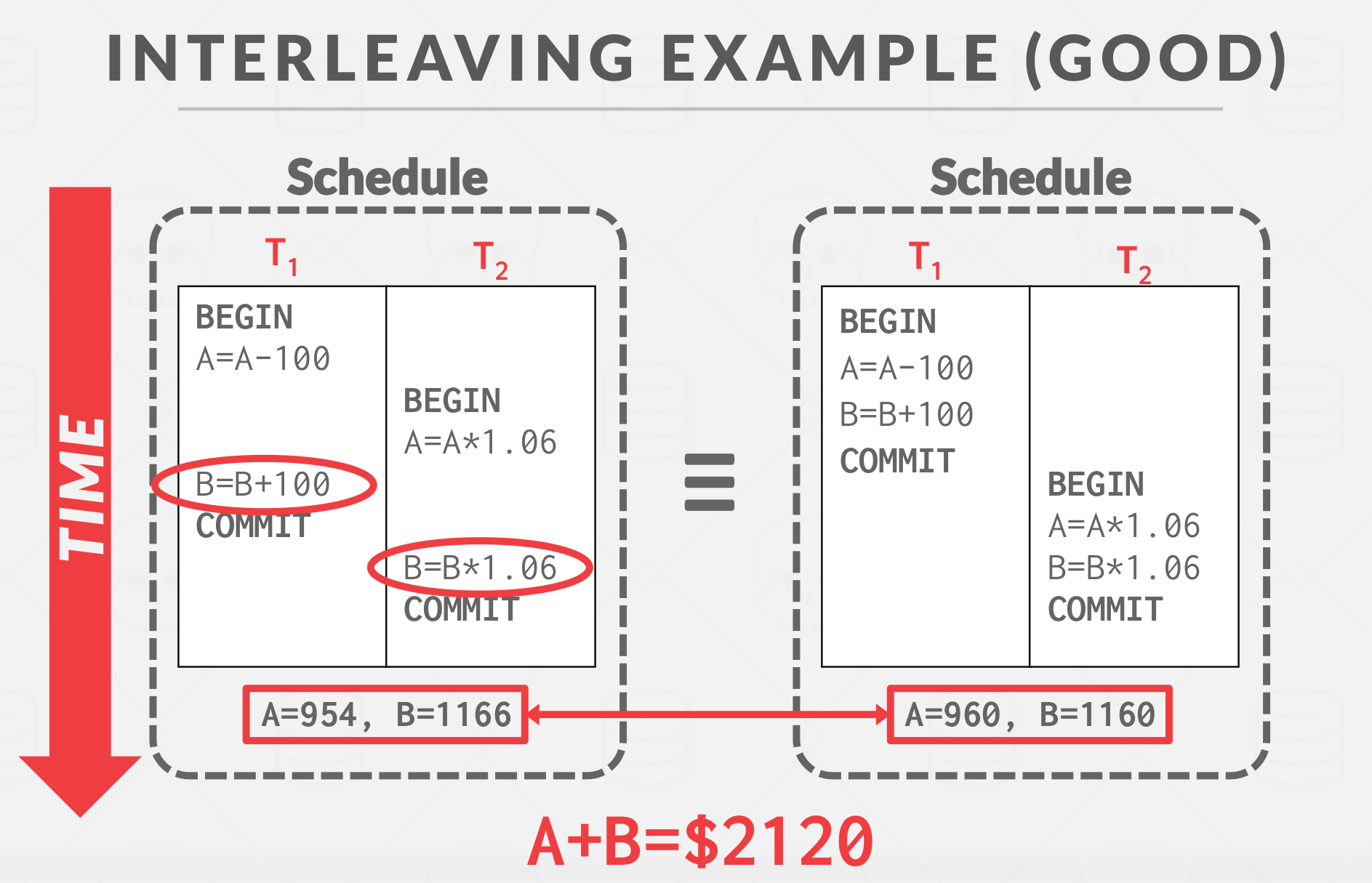

Good Interleaving Example

Bad interleaving example:

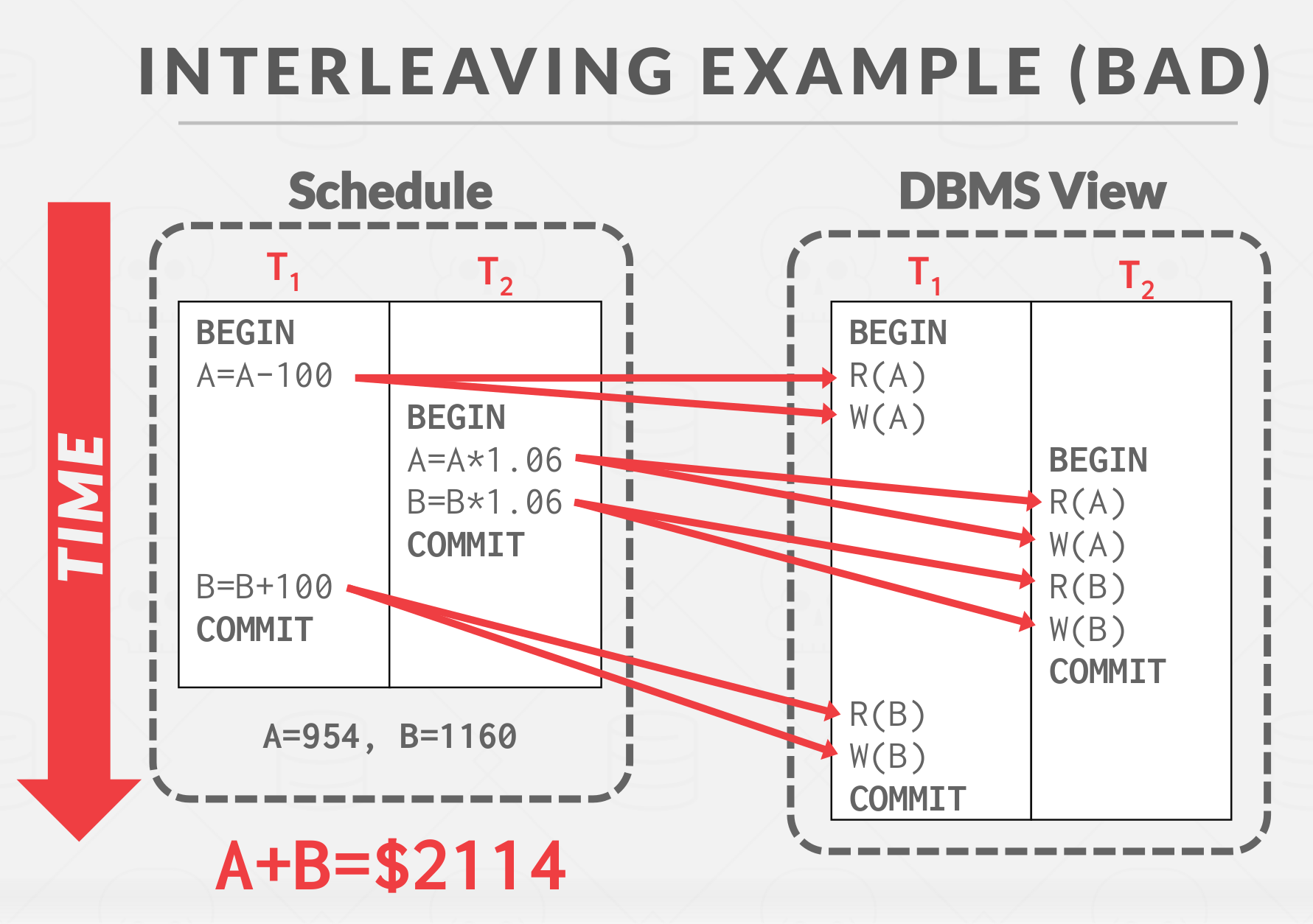

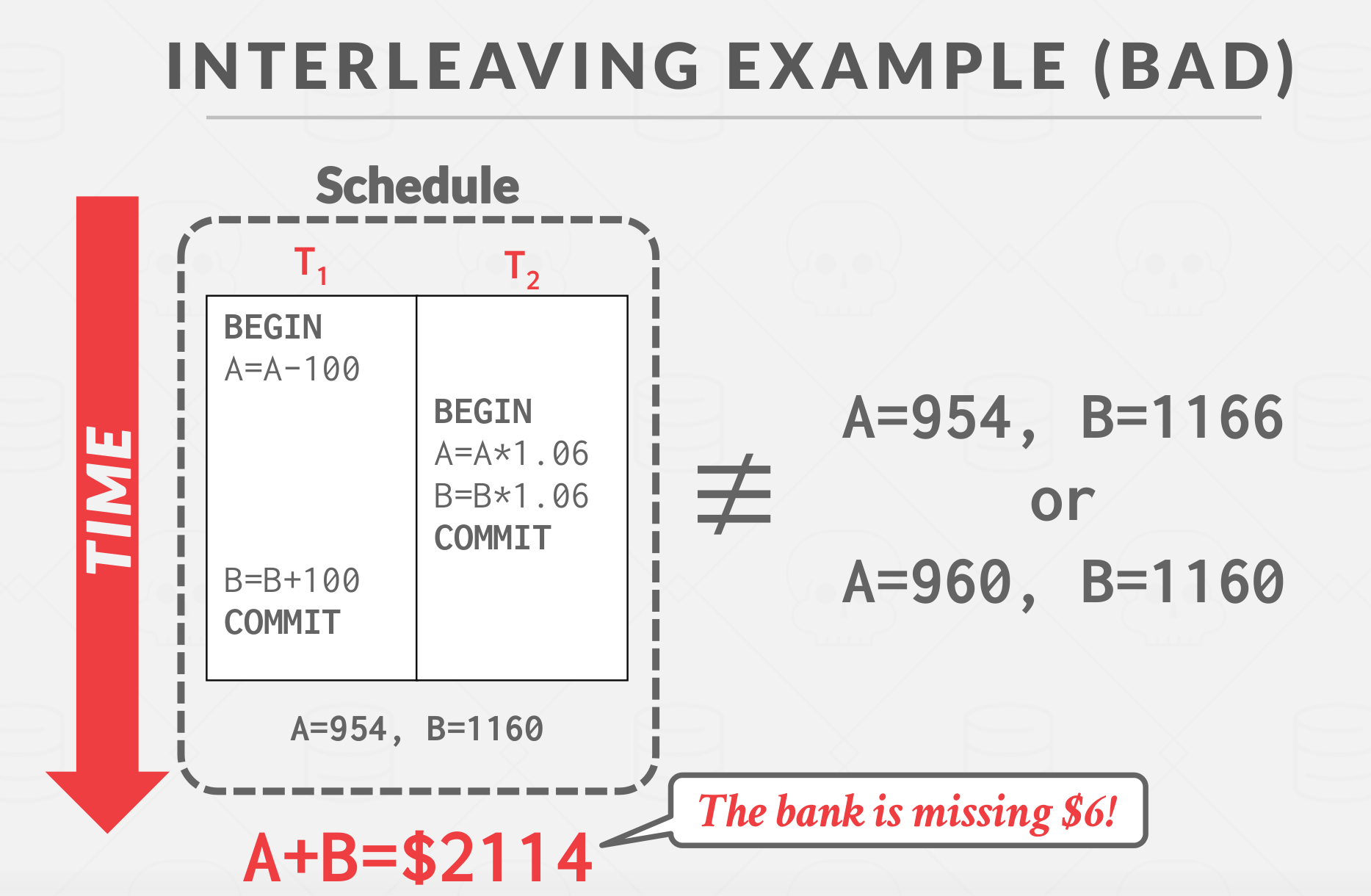

Bad Interleaving Example

The DBMS does not see these operations like B=B+100, so it can’t do any tricks like play some math game like B=B+100 inside the DBMS. All DBMS sees are these read, write operations below, so again, it doesn’t understand the high-level meaning of if it read a record what’s it actually going to do with it writes it back. it does not know that because that’s over an application code.


Bad Interleaving Example with Read & Write

Since Interleaving transactions execution can cause many outcomes, we need a way judge whether a schedule is correct, i.e. If the schedule is equivalent to some serial serial execution, we say the interleaving execution is correct.

Formal properties of schedule #

The order in which the DBMS executes operations is called an execution schedule. We want to interleave transactions to maximize concurrency while ensuring that the optput is “correct”. The goal of a concurrency control protocol is generate an execution schedule that is equivalent to some serial execution:

Serial Schedule: Schedule that does not interleave the actions of different transactions.
Equivalent Schedules: For any database state, if the effect of execution the first schedule is identical to the effect of executing the second schedule, the two schedules are equivalent.
Serializable Schedule: A serializable schedule is a schedule that is equivalent to some serial execution of the transactions. Different serial executions can produce different results, but all are considered “correct”. If each transaction preserves consistency, every serializable schedule preserves consistency. Serializability is a less intutive notion of correctness compared to initiation time or commit order, but it provides the DBMS with more flexibility in scheduling operations. More flexibility means better parallelism.

Conflicting Serializable #

A conflict between two operations occurs if the operations are for different transactions, they are performed on the same object, and at least one of the operations is a write. There are three variations of conflicts:

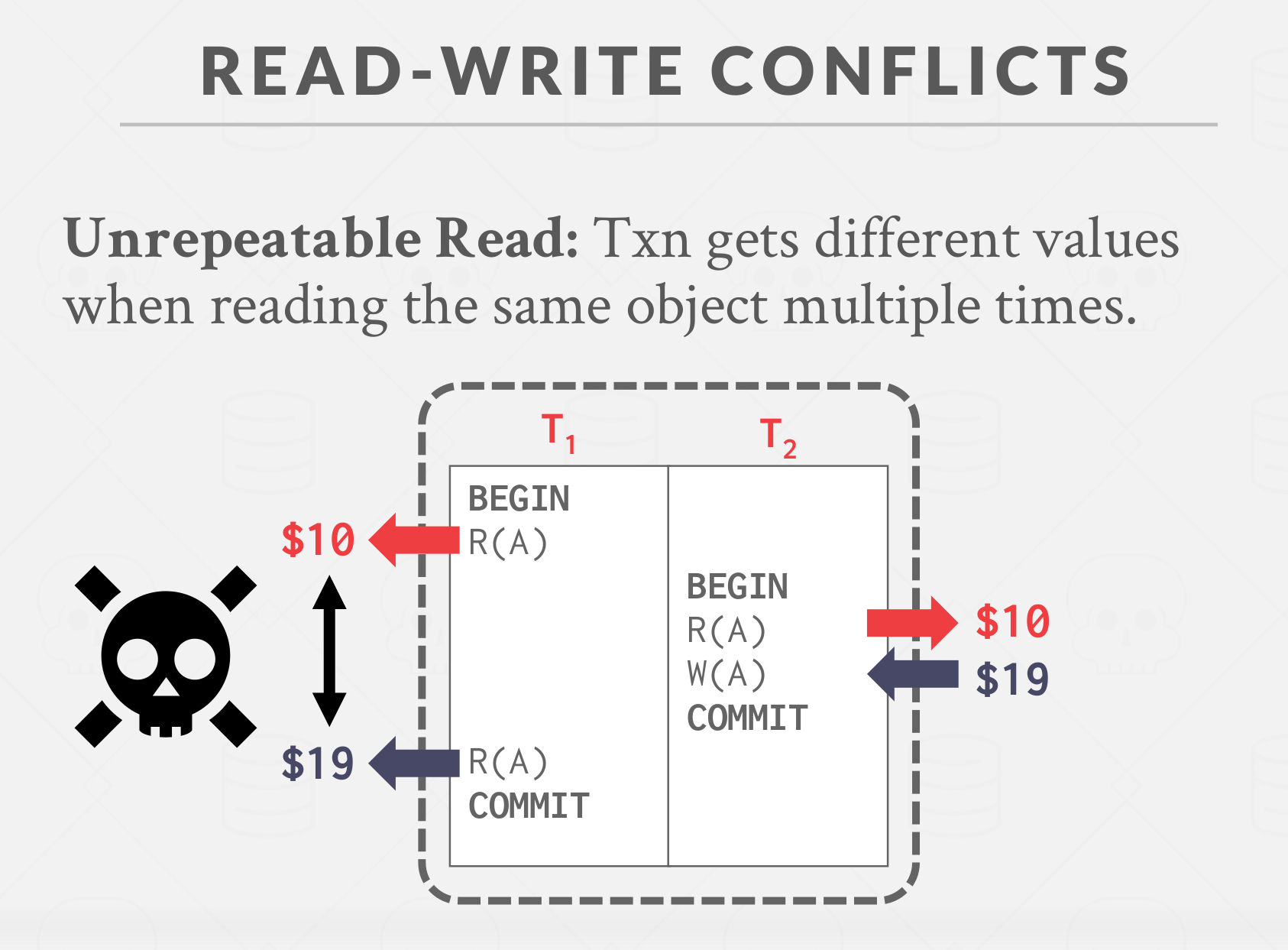

Read-Write Conflicts (“Unrepeatable Reads”): A transaction is not able to get the same value when reading the same object multiple times.


Read-Write Conflicts (“Unrepeatable Reads”)

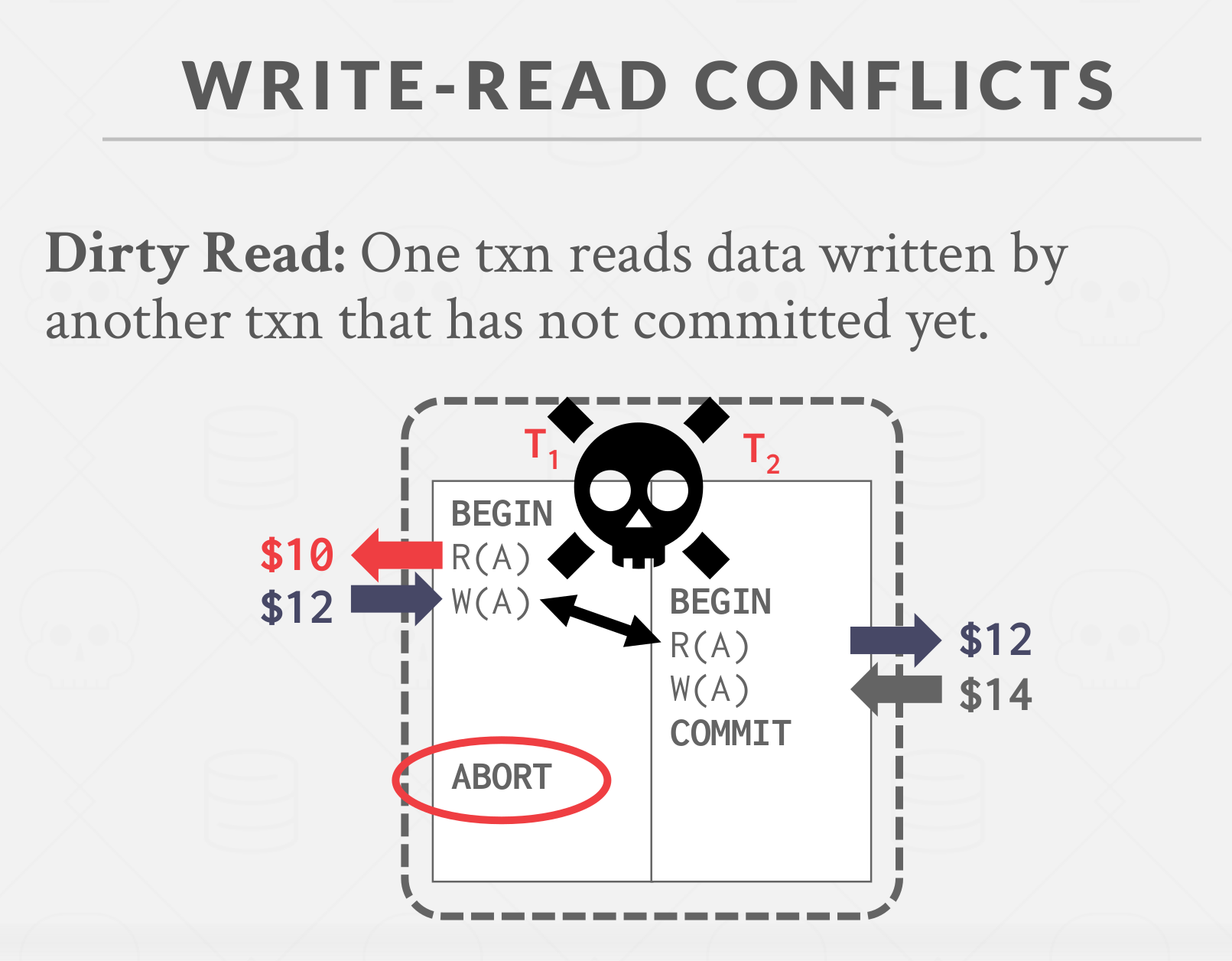

Write-Read Conflicts (“Dirty Reads”): A transaction sees the write effects of a different transaction before that transaction committed its changes.


Write-Read Conflicts (“Dirty Reads”)

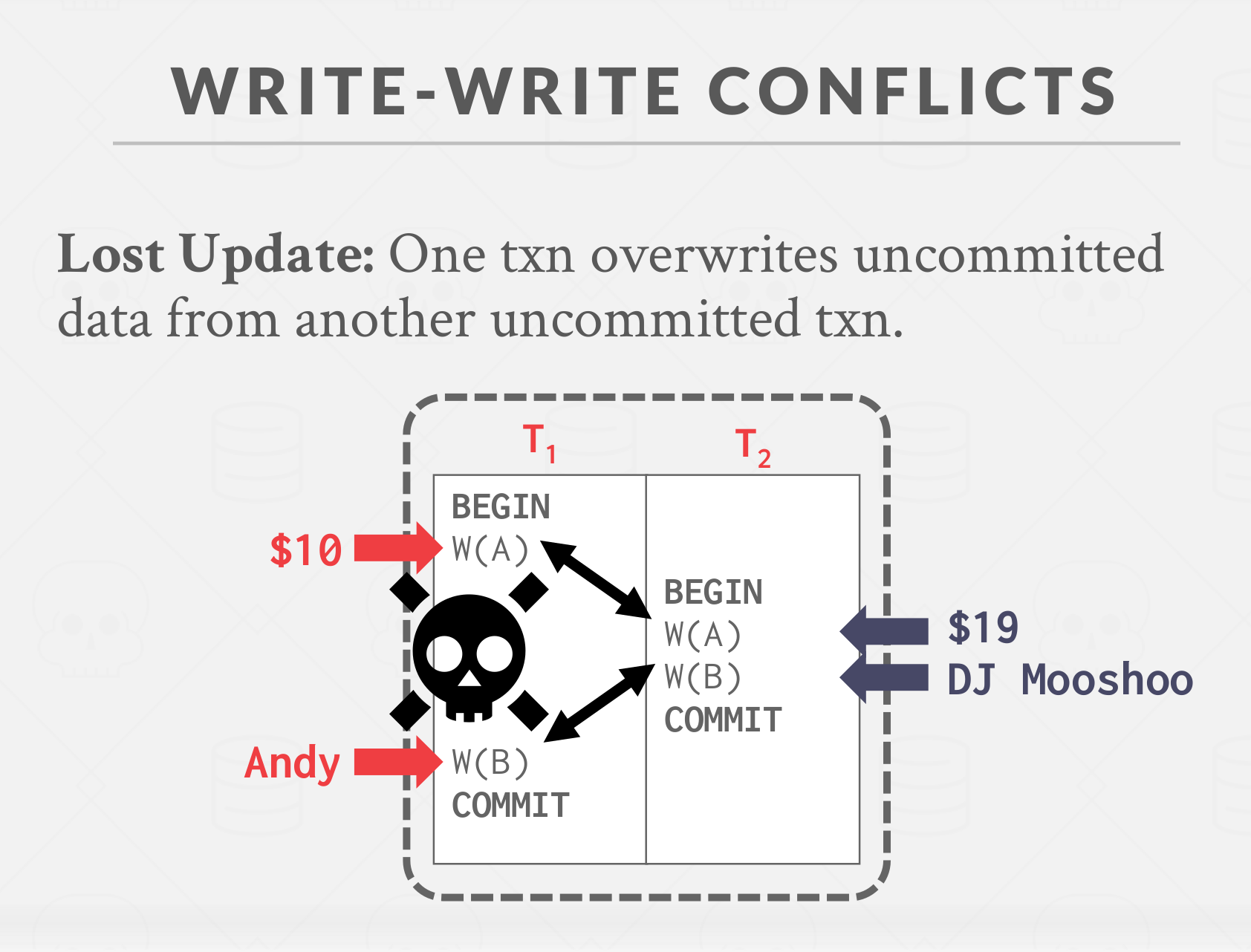

Write-Write conflict (“Lost Updates”): One transaction overwrites the uncommitted data of another concurrent transaction.


Write-Write conflict (“Lost Updates”)

Given these conflicts, there are two types for serializability:

Conflict serializability
View serializability

Conflict serializability #

Two schedules are conflict equivalent iff:

they involve the same operations of the same transactions
and every pair of conflicting operations is ordered in the same way in both schedules.

A schedule S is conflict serializable if:

S is conflict equivalent to some serial schedule.

Intuition: You can transform S into a serial schedule by swapping consecutive non-conflicting operations of different transactions.

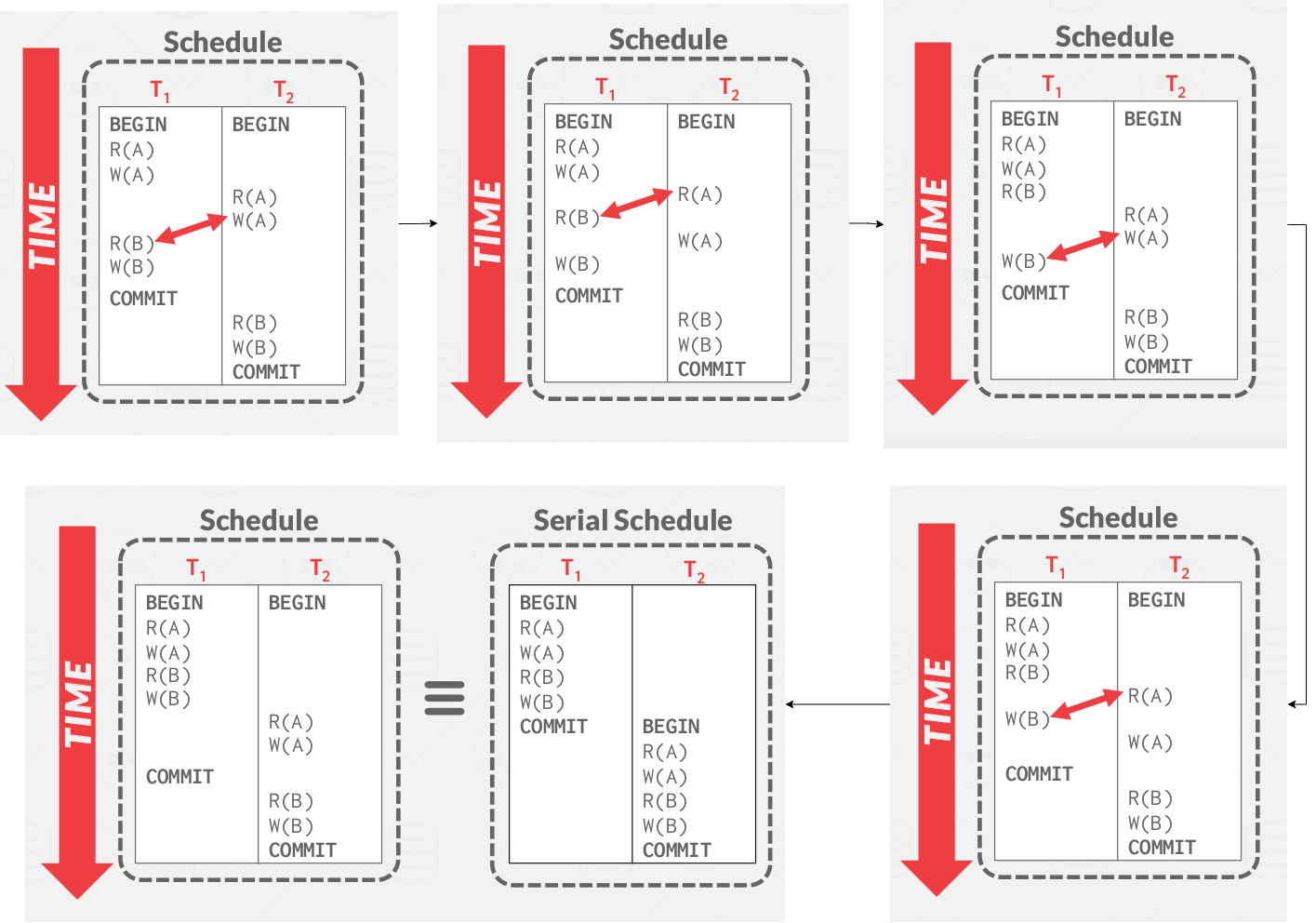

Conflict serializability intuition

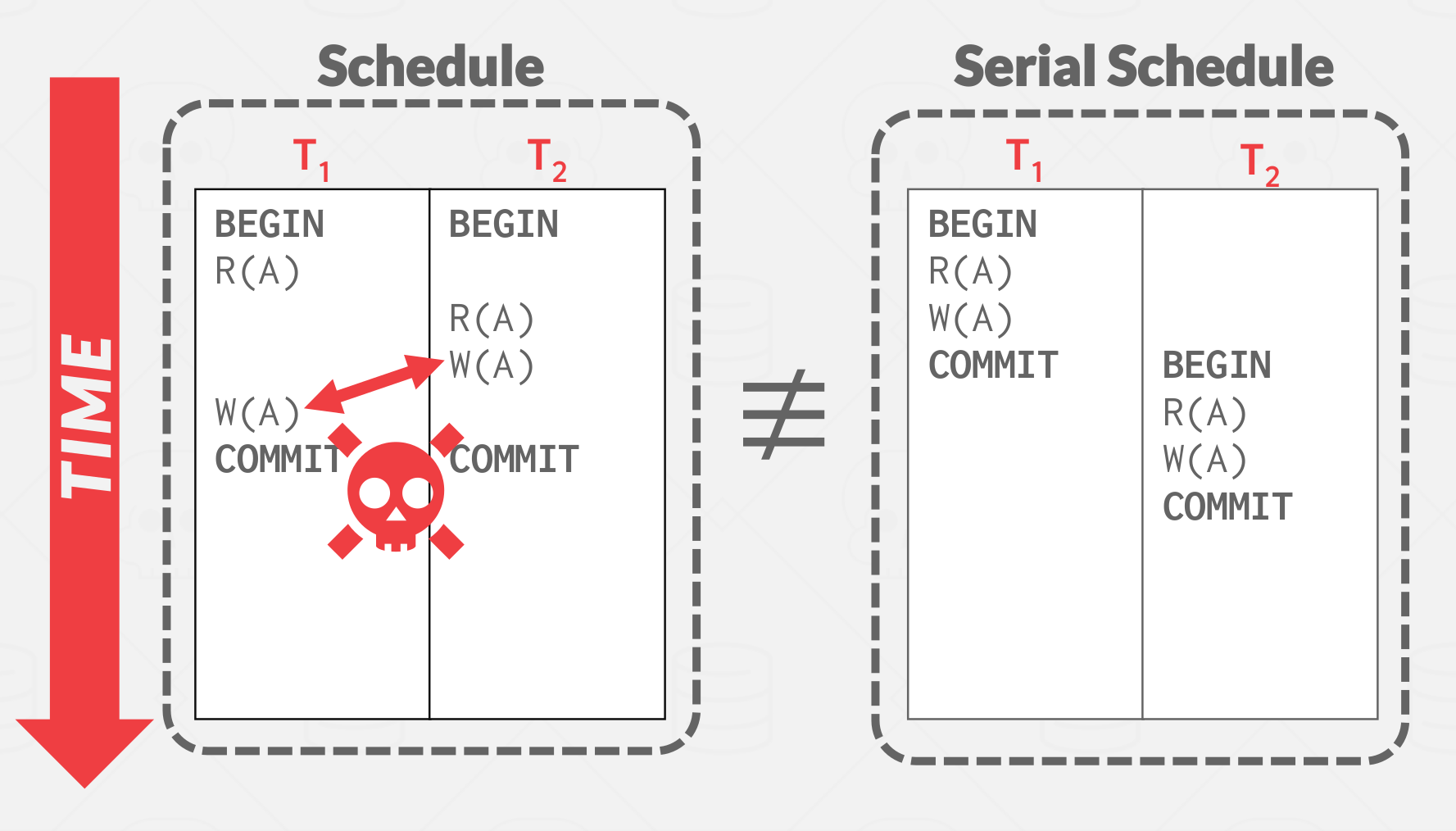

Non conflict serializable

One can verify that a schedule is conflict serializable by swapping non-conflicting operations until a serial schedule is formed. For schedules with many transactions, this becomes too expensive. A better way to verify schedules is to use a dependency graph (a.k.a. precedence graph).

In a dependency graph, each transaction is a node in the graph. There exists a directed edge from node $ T_i $ to $ T_j $ iff:

An operation $ O_i $ from $ T_i $ conflicts with an operation $ O_j $ from $ T_j $ and
$ O_i $ occurs before $ O_j $ in the schedule.

A schedule is conflict serializable iff the dependency graph is acyclic.

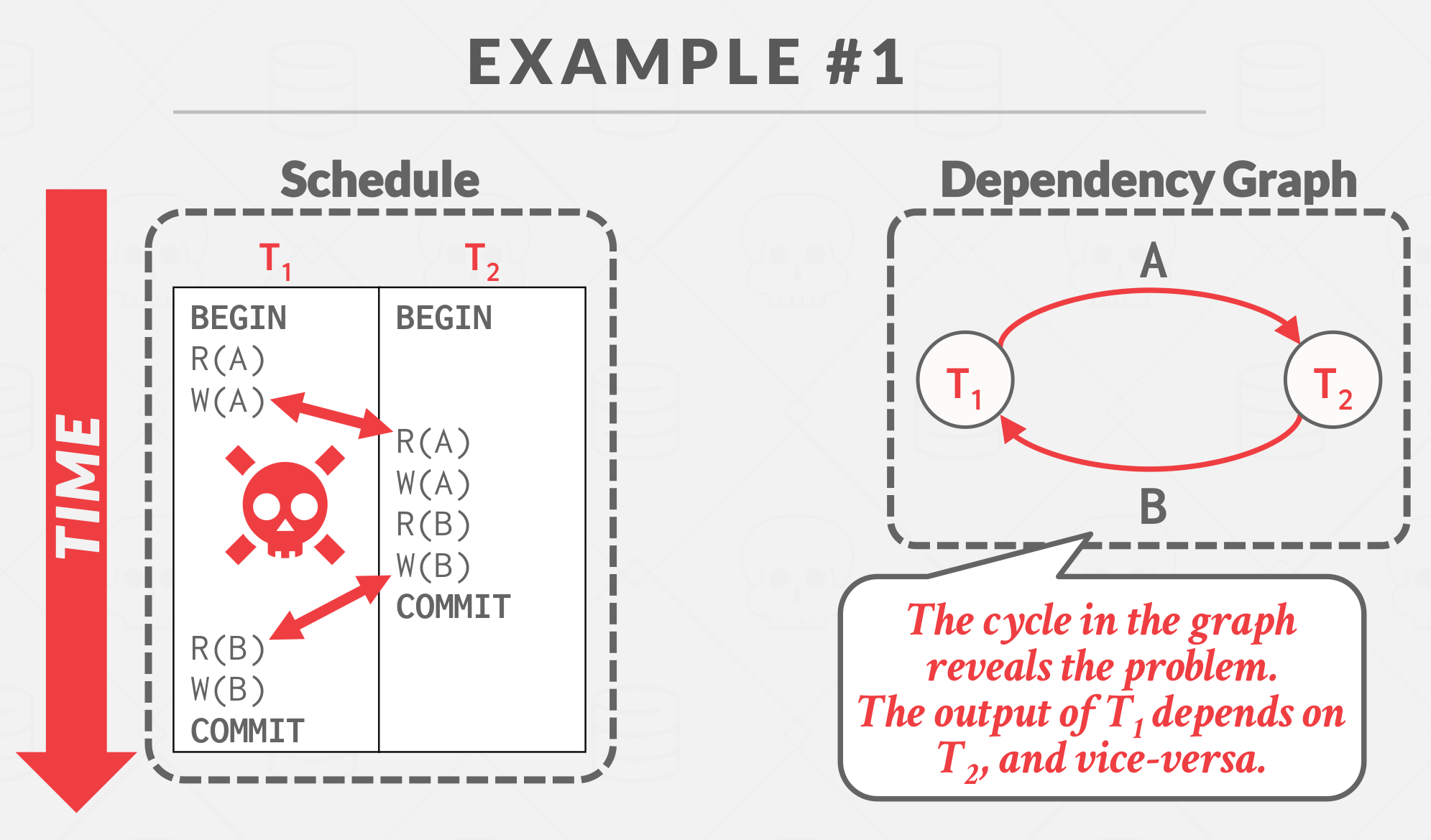

Example #1


Example Non conflict serializable

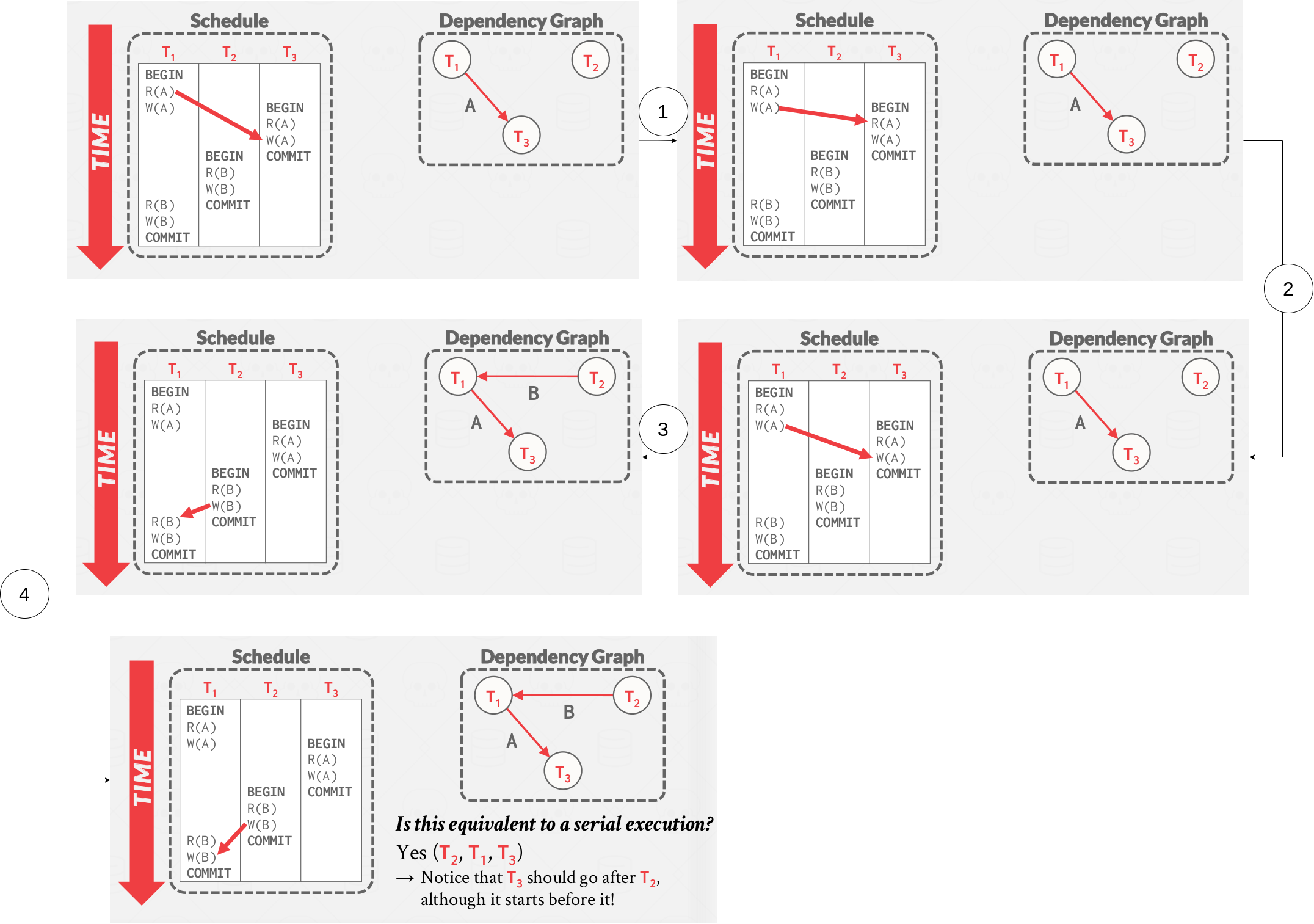

Example #2 - Threesome example


Example conflict serializable - threesome

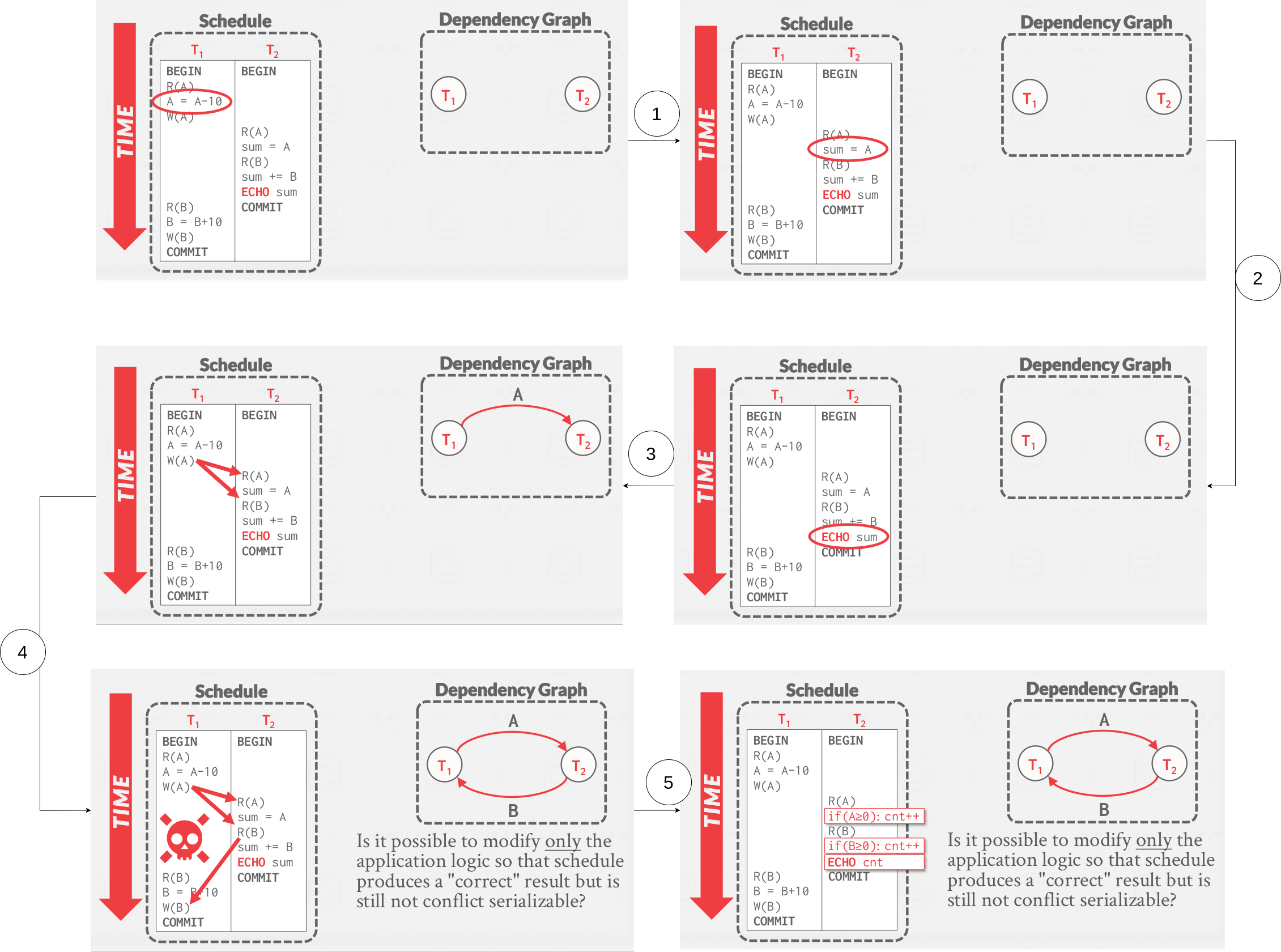

Example #3 - Inconsistent analysis


Inconsistent analysis

View serializability #

View serializability is a weaker notion of serializibility that allows for all schedules that are conflict serializable and “blind writes” (i.e. performing writes without reading the value first). Thus, it allows for more schedules than conflict serializability, but is difficult to enforce efficiently. This is because the DBMS does not know how the application will “interpret” values.

Schedules $ S_1 $ and $ S_2 $ are view equivalent if:

If $ T_1 $ reads initial value of A in $ S_1 $ , then $ T_1 $ also reads initial value of A in $ S_2 $ .
If $ T_1 $ reads value of A written by $ T_2 $ in $ S_1 $ , then $ T_1 $ also reads value of A written by $ T_2 $ in $ S_2 $ .
If $ T_1 $ writes final value of A in $ S_1 $ , then $ T_1 $ also writes final value of A in $ S_2 $ .

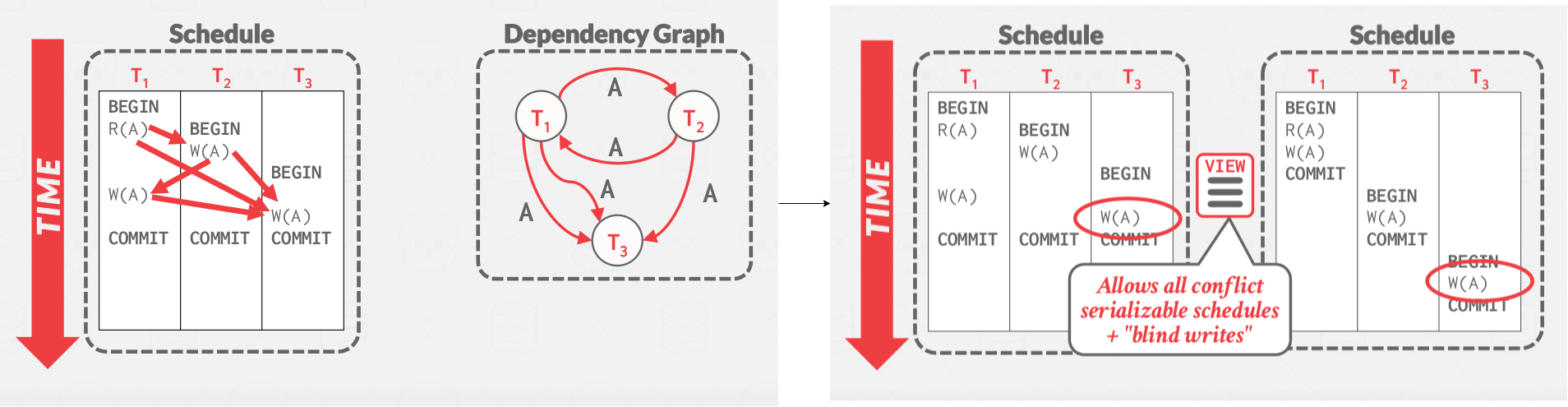

View serializability

Neither Conflict serializability and View serializability allows all schedules that one would consider serializable. Because DBMS don’t understand the meaning of the operations or the data(recall example #3 - Inconsistent analysis)

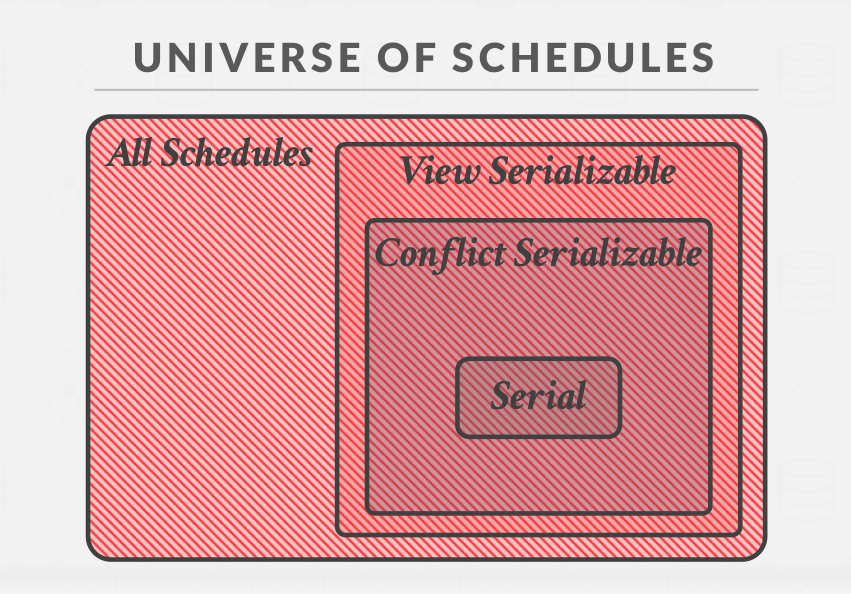

Universe of schedules

In practice, DBMSs support conflict serializability because it can be enforced efficiently.

To allow more concurrency, some special cases need to be handled separately at the application level.

7. ACID: Durability #

All of the changes of committed transactions must be durable (i.e., persistent) after a crash or restart.

No torn updates.
No changes from failed transactions.

The DBMS can either use logging or shadow paging to ensure that all changes are durable.

8. Conclusion #

Concurrency control and recovery are among the most important functions provided by a DBMS.

Concurrency control is automatic(i.e., manged by the DBMS internally).

System automatically inserts lock/unlock requests and schedules actions of different txns.
Ensures that resulting execution is equivalent to executing the txns one after the other in some order.
